Rotodynamic Pump Types

The Hydraulic Institute standardizes rotodynamic and positive displacement [Link] pump types, definitions and nomenclature. The description for each rotodynamic pump type, and the related industry standard are included.

Rotodynamic pumps impart energy to the pumped fluid by means of a rotating impeller, propeller or rotor. They include centrifugal pumps, and mixed and axial flow pumps.

Index

Pump Types - Rotodynamic Overhung
Pump Types - Rotodynamic Between Bearing
Pump Types - Rotodynamic Vertically Suspended

Pump Types - Rotodynamic Overhung

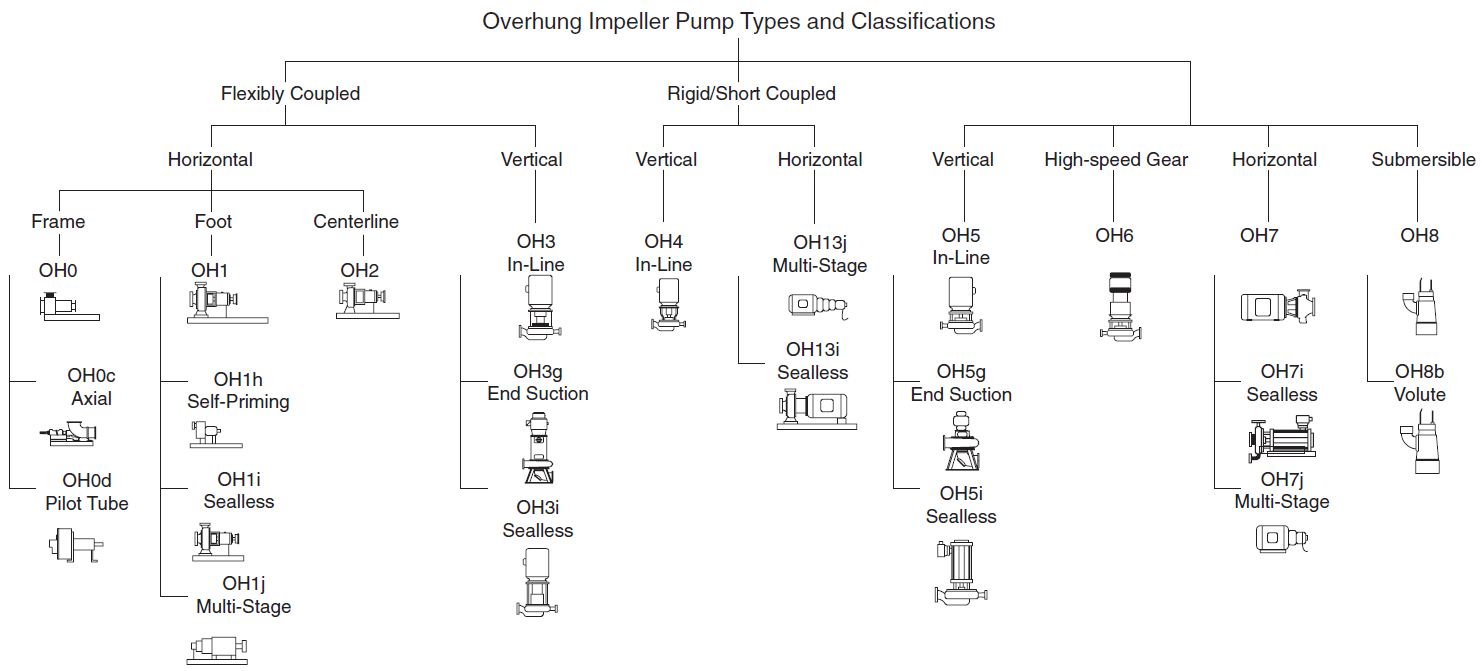

Pump Types - Rotodynamic Overhung
Acronym Pump Description Reference
OH0 Overhung impeller - flexibly coupled - horizontal - frame mounted - single stage ANSI/HI 14.1-14.2
OH0c Overhung impeller - flexibly coupled - horizontal - axial flow - single stage ANSI/HI 14.1-14.2
OH0d Overhung - flexibly coupled - horizontal - frame mounted - pitot tube pump ANSI/HI 14.1-14.2
OH1 Overhung impeller - flexibly coupled - horizontal - foot mounted - single stage ANSI/HI 14.1-14.2
OH1h Overhung impeller - flexibly coupled - horizontal - foot mounted - self-priming - single stage ANSI/HI 14.1-14.2
OH1i Overhung impeller - flexibly coupled - horizontal - foot mounted - sealless - single stage ANSI/HI 5.1-5.6
OH1j Overhung impeller - flexibly coupled - horizontal - foot mounted -multi-stage ANSI/HI 14.1-14.2
OH2 Overhung impeller - flexibly coupled - horizontal - centerline mounted - single stage ANSI/HI 14.1-14.2
OH3 Overhung impeller - flexibly coupled - vertical - in-line - integral bearing frame - single stage ANSI/HI 14.1-14.2
OH3g Overhung impeller - flexibly coupled - vertical - end suction - single stage ANSI/HI 14.1-14.2
OH4 Overhung impeller - rigidly coupled - vertical - in-line - single stage ANSI/HI 14.1-14.2
OH5 Overhung impeller -close-coupled - vertical - in-line - single stage ANSI/HI 14.1-14.2
OH5g Overhung impeller -close-coupled - vertical - end suction - single stage ANSI/HI 14.1-14.2
OH5i Overhung impeller -close-coupled - vertical - in-line - sealless - single stage ANSI/HI 5.1-5.6
OH6 Overhung impeller - close-coupled - vertical - in-line - high-speed integral gear - single stage ANSI/HI 14.1-14.2
OH7 Overhung impeller - close-coupled - horizontal - single stage ANSI/HI 14.1-14.2
OH7j Overhung impeller - close-coupled - horizontal - multi-stage ANSI/HI 14.1-14.2
OH7i Overhung impeller - close-coupled - horizontal - sealless - single stage ANSI/HI 5.1-5.6
OH8 Overhung impeller - close-coupled - submersible - diffuser - end suction - single stage ANSI/HI 14.1-14.2
OH8b Overhung impeller - close-coupled - submersible - volute - end suction - single stage ANSI/HI 14.1-14.2
OH13j Overhung impeller - rigidly coupled - horizontal - foot mounted - multi-stage ANSI/HI 14.1-14.2
OH13i Overhung impeller - rigidly coupled - horizontal - foot mounted - sealless - single stage ANSI/HI 5.1-5.6
CP1 Circulator pump - close-coupled - sealless - horizontal - in-line ANSI/HI 14.1-14.2
CP2 Circulator pump - close-coupled - horizontal - in-line ANSI/HI 14.1-14.2
CP3 Circulator pump - flexibly coupled - horizontal - in-line ANSI/HI 14.1-14.2
RT1 Regenerative turbine - overhung - side channel ANSI/HI 14.1-14.2
RT2 Regenerative turbine - overhung - peripheral ANSI/HI 14.1-14.2

Pump Types - Rotodynamic Between Bearing

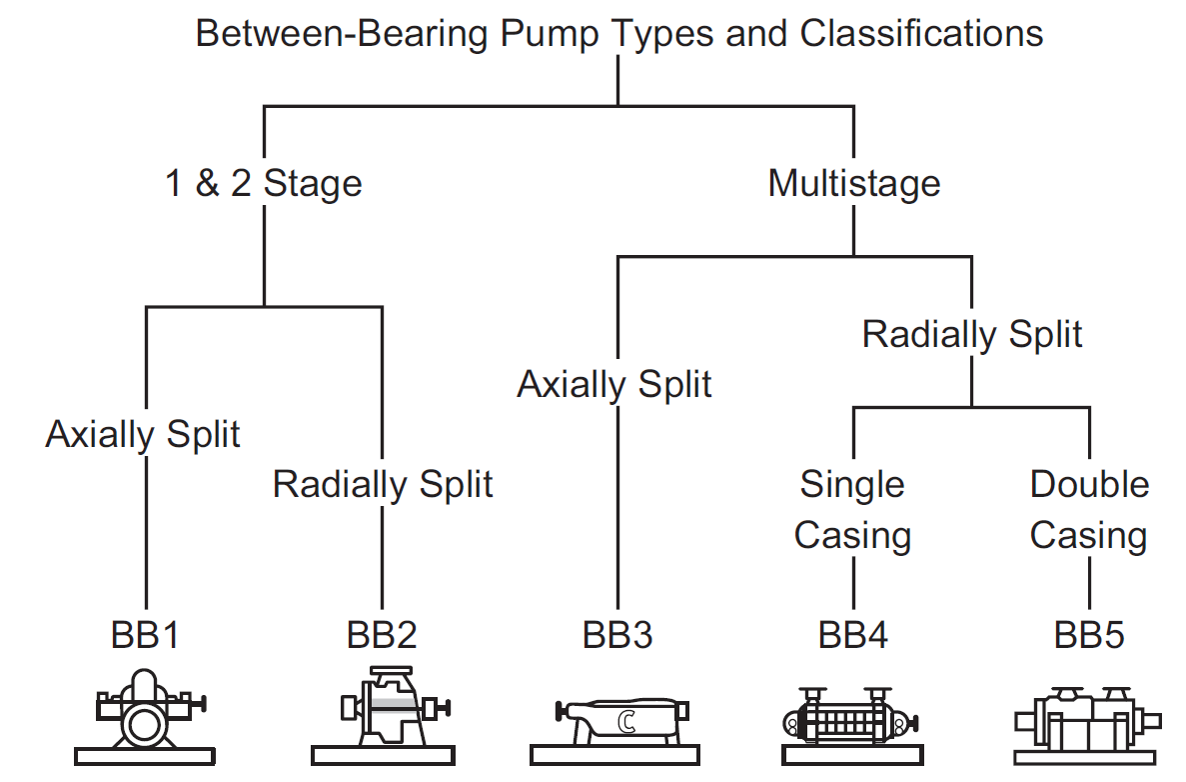

Pump Types - Rotodynamic Between Bearing
Acronym Pump Description Reference
BB1 Between bearing impeller - 1 or 2 stage - axially split ANSI/HI 14.1-14.2
BB2 Between bearing impeller - 1 or 2 stage - radially split ANSI/HI 14.1-14.2
BB3 Between bearing impeller - multi-stage - axially split ANSI/HI 14.1-14.2
BB4 Between bearing impeller - multi-stage - radially split - single casing ANSI/HI 14.1-14.2
BB5 Between bearing impeller - multi-stage - radially split -double casing ANSI/HI 14.1-14.2
RT3 Regenerative turbine - between bearings - side channel ANSI/HI 14.1-14.2
RT4 Regenerative turbine - between bearings - peripheral ANSI/HI 14.1-14.2

Pump Types - Rotodynamic Vertically Suspended

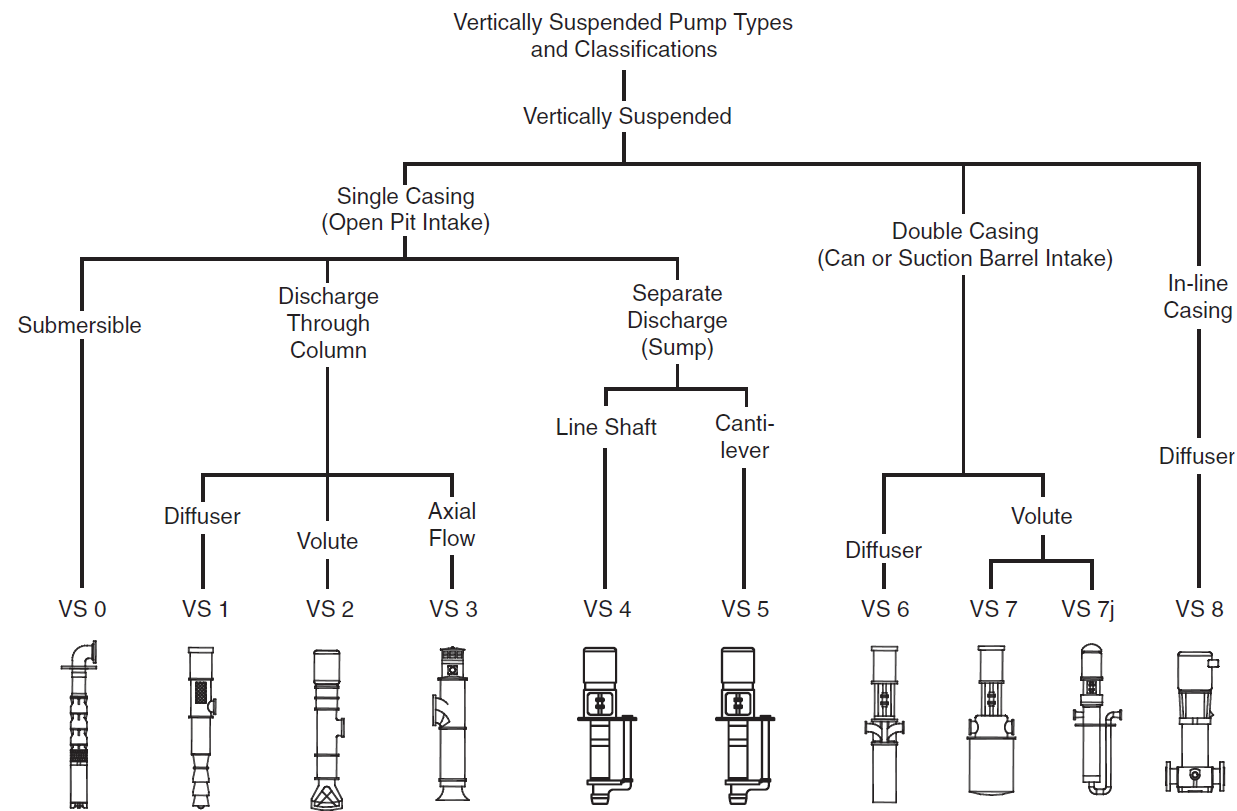

Pump Types - Rotodynamic Vertically Suspended
Acronym Pump Description Reference
VS0 Vertically suspended - single casing - discharge through column - submersible ANSI/HI 14.1-14.2
VS1 Vertically suspended - single casing - discharge through column - diffuser ANSI/HI 14.1-14.2
VS2 Vertically suspended - single casing - discharge through column - volute ANSI/HI 14.1-14.2
VS3 Vertically suspended - single casing - discharge through column - axial flow ANSI/HI 14.1-14.2
VS4 Vertically suspended - single casing - separate discharge - line shaft ANSI/HI 14.1-14.2
VS5 Vertically suspended - single casing - separate discharge - cantilever ANSI/HI 14.1-14.2
VS6 Vertically suspended - double casing - diffuser ANSI/HI 14.1-14.2
VS7 Vertically suspended - double casing - volute ANSI/HI 14.1-14.2
VS7j Vertically suspended - double casing - volute - multi-stage ANSI/HI 14.1-14.2
VS8 Vertically suspended - in-line casing - diffuser ANSI/HI 14.1-14.2

Last updated on August 31, 2026
